Cart state transition matrix

This page defines the state transition model for snappycart.

It exists to support test design for contributors working on cart logic, provider behaviour, and UI interactions.

The goal is not to generate random test cases. The goal is to map the cart states, valid transitions, guarded transitions, derived value checks, and key visual behaviours in a structured way.

Why this matrix matters

snappycart behaviour is driven by more than one moving part:

• cart data state
• drawer UI state
• derived values such as totalItems and subtotal

A single action can look correct in isolation and still break the contract when state transitions are considered as a whole.

State model

Cart data states

ID	State	Description
C0	Empty	No items in the cart
C1	SingleLineQty1	One line item with quantity equal to 1
C2	SingleLineQtyGT1	One line item with quantity greater than 1
C3	MultiLine	More than one line item in the cart

Drawer UI states

ID	State	Description
D0	DrawerClosed	Drawer is closed
D1	DrawerOpen	Drawer is open

Combined states

ID	Combination	Description
S0	D0 + C0	Drawer closed, cart empty
S1	D1 + C0	Drawer open, cart empty
S2	D0 + C1	Drawer closed, one line item, quantity = 1
S3	D1 + C1	Drawer open, one line item, quantity = 1
S4	D0 + C2	Drawer closed, one line item, quantity > 1
S5	D1 + C2	Drawer open, one line item, quantity > 1
S6	D0 + C3	Drawer closed, multiple line items
S7	D1 + C3	Drawer open, multiple line items

Core assumptions

These assumptions should be treated as the intended contract unless package behaviour changes deliberately:

• adding the same product merges by product.id
• increment increases quantity by one
• decrement reduces quantity by one
• decrement from one removes the line item
• clear() empties the cart data
• drawer visibility is controlled separately from cart data
• invalid quantity input should not create a broken cart state

Main valid transitions

ID	From	Event	Guard	To	Expected result
T01	S0	INIT	Initial render	S0	Empty cart, badge = 0, subtotal = 0
T02	S0	OPEN_DRAWER	User clicks cart icon	S1	Drawer becomes visible
T03	S1	CLOSE_DRAWER	Close action fired	S0	Drawer becomes hidden
T04	S0	ADD_NEW_ITEM	Valid product	S2	First line item added
T05	S1	ADD_NEW_ITEM	Valid product	S3	First line item added, drawer remains open
T06	S2	ADD_SAME_ITEM	Same product.id	S4	Quantity increases from 1 to more than 1
T07	S3	ADD_SAME_ITEM	Same product.id	S5	Quantity increases from 1 to more than 1
T08	S2	ADD_DIFFERENT_ITEM	Different product.id	S6	Second line item added
T09	S3	ADD_DIFFERENT_ITEM	Different product.id	S7	Second line item added, drawer remains open
T10	S4	INCREMENT_EXISTING	Existing line item	S4	Quantity increases, same cart shape
T11	S5	INCREMENT_EXISTING	Existing line item	S5	Quantity increases, drawer remains open
T12	S4	DECREMENT_EXISTING	Quantity becomes 1	S2	Single line item remains with quantity 1
T13	S5	DECREMENT_EXISTING	Quantity becomes 1	S3	Single line item remains with quantity 1
T14	S2	REMOVE_LINE	Only line item removed	S0	Cart becomes empty
T15	S3	REMOVE_LINE	Only line item removed	S1	Cart becomes empty, drawer remains open
T16	S4	REMOVE_LINE	Only line item removed	S0	Cart becomes empty
T17	S5	REMOVE_LINE	Only line item removed	S1	Cart becomes empty, drawer remains open
T18	S6	OPEN_DRAWER	User clicks cart icon	S7	Drawer becomes visible
T19	S7	CLOSE_DRAWER	Close action fired	S6	Drawer becomes hidden
T20	S6	ADD_SAME_ITEM	Existing line item	S6	Quantity increases, line count unchanged
T21	S7	ADD_SAME_ITEM	Existing line item	S7	Quantity increases, line count unchanged
T22	S6	ADD_DIFFERENT_ITEM	New line item	S6	Line count increases
T23	S7	ADD_DIFFERENT_ITEM	New line item	S7	Line count increases, drawer remains open
T24	S6	REMOVE_NON_LAST_LINE	More than one line remains	S6	One line removed, cart still multi-line
T25	S7	REMOVE_NON_LAST_LINE	More than one line remains	S7	One line removed, cart still multi-line
T26	S6	REMOVE_LINE	One line remains with quantity 1	S2	Cart collapses to single-line qty 1
T27	S7	REMOVE_LINE	One line remains with quantity 1	S3	Cart collapses to single-line qty 1
T28	S6	REMOVE_LINE	One line remains with quantity > 1	S4	Cart collapses to single-line qty > 1
T29	S7	REMOVE_LINE	One line remains with quantity > 1	S5	Cart collapses to single-line qty > 1
T30	S2	CLEAR	Clear invoked	S0	Cart becomes empty
T31	S3	CLEAR	Clear invoked	S1	Cart becomes empty, drawer remains open
T32	S4	CLEAR	Clear invoked	S0	Cart becomes empty
T33	S5	CLEAR	Clear invoked	S1	Cart becomes empty, drawer remains open
T34	S6	CLEAR	Clear invoked	S0	Cart becomes empty
T35	S7	CLEAR	Clear invoked	S1	Cart becomes empty, drawer remains open

Guarded and invalid transitions

ID	From	Event	Expected result
N01	S0 or S1	REMOVE_LINE	No state change
N02	S0 or S1	INCREMENT_EXISTING	No state change
N03	S0 or S1	DECREMENT_EXISTING	No state change
N04	S0 or S1	CLEAR	No crash, state remains empty
N05	S0	CLOSE_DRAWER	No state change
N06	S1	OPEN_DRAWER	No state change
N07	Any non-empty state	SET_QUANTITY(0)	Line item removed or request rejected, but no broken state
N08	Any non-empty state	SET_QUANTITY(-1)	Request rejected or normalised safely
N09	Any non-empty state	SET_QUANTITY(NaN)	Request rejected, no corrupted state
N10	Any non-empty state	SET_QUANTITY(decimal)	Request rejected or normalised consistently
N11	Any state	ADD_NEW_ITEM with invalid payload	Request rejected, no corrupted state
N12	Any state	Rapid repeated actions	No broken totals, no duplicate inconsistent state

Derived values matrix

Every mutating transition must validate more than the line items list.

Event	Distinct lines	totalItems	subtotal	Badge	Empty state
Initial empty state	0	0	0	0	Visible when drawer is open
Add new item	Increases	Increases	Increases	Updates	Hidden
Add same item	Unchanged	Increases	Increases	Updates	Hidden
Add different item	Increases	Increases	Increases	Updates	Hidden
Increment	Unchanged	Increases by 1	Increases	Updates	Hidden
Decrement	Unchanged or reduced	Decreases by 1	Decreases	Updates	Visible only if cart becomes empty
Remove line	Decreases	Decreases	Decreases	Updates	Visible only if last line is removed
Clear	0	0	0	0	Visible when drawer is open

What to validate after each transition

After every valid cart mutation, contributors should verify:

• items.length
• individual line item quantity
• totalItems
• subtotal
• visible badge value
• empty state visibility
• drawer visibility state
• correct rendering of item names, prices, and controls when applicable

Visual state references

The screenshots below should show the stable visual outcome for the most important cart states.

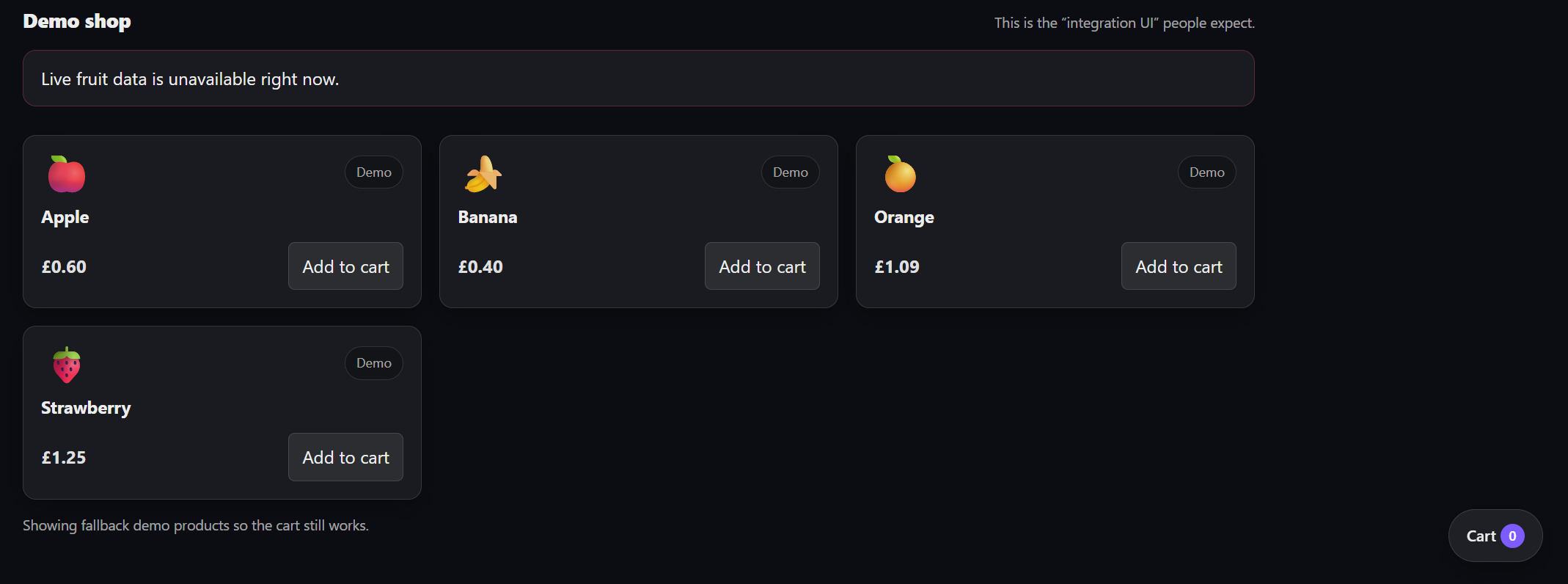

S0 Cart Empty, Drawer Closed

Purpose

• State S0: drawer closed, cart empty.

Start state

• Fresh page load, no items in cart.

What should be visible

• cart icon
• badge shows 0 if your demo shows empty badge, or no badge if hidden by design
• drawer is closed

Do not show

• open drawer
• any added item

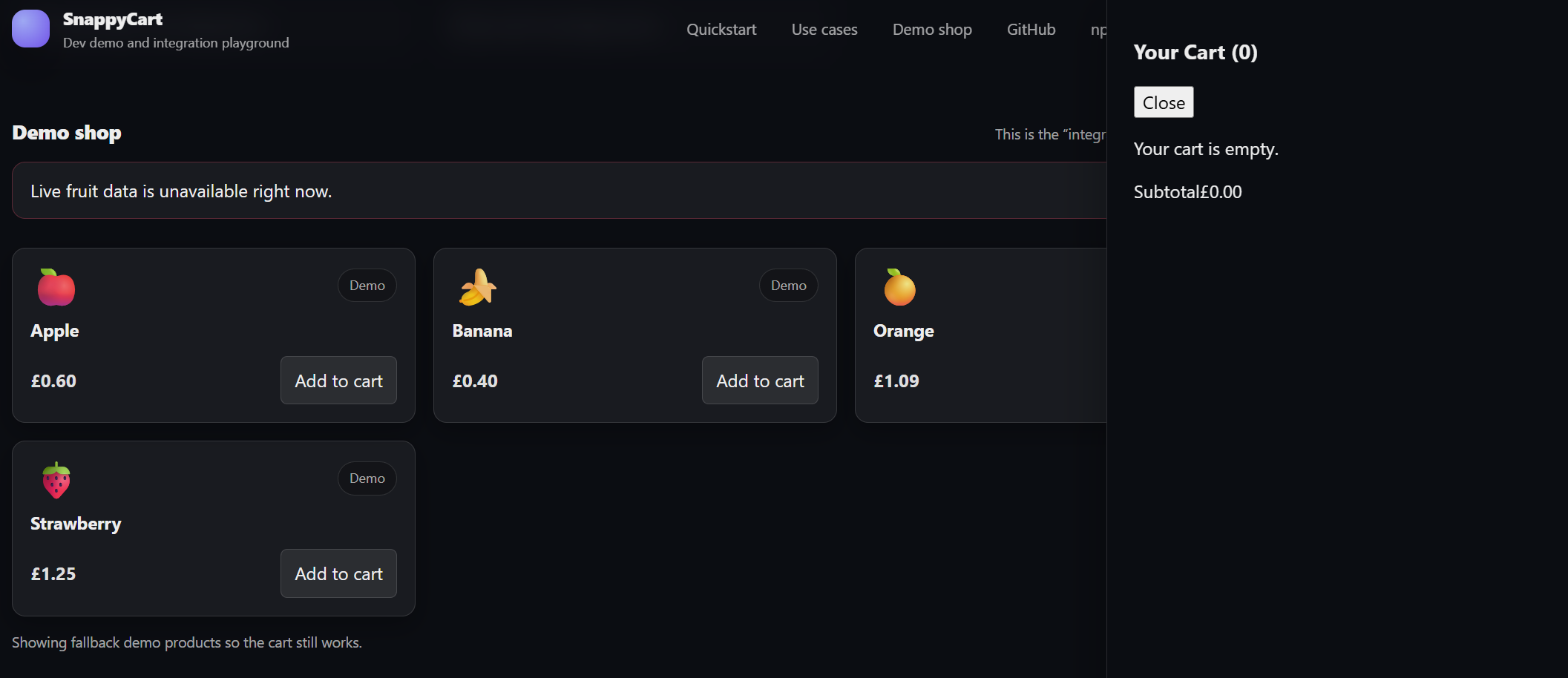

S1 Cart Empty, Drawer Open

Purpose

• State S1: drawer open, cart empty.

Start state

• Fresh page load, empty cart.

Action

• click cart icon

What should be visible

• open drawer
• empty cart message
• subtotal at zero if shown
• no line items

Capture tip

• Make sure the empty state text is readable and centered properly.

S2 Single line item, quantity = 1

Purpose

• State S2: one line item, quantity = 1.

Start state

• empty cart
• drawer closed

Action

• add Apple once
• keep drawer closed if possible for this shot

What should be visible

• badge = 1
• drawer closed
• cart has one item in state, but only badge is visible externally

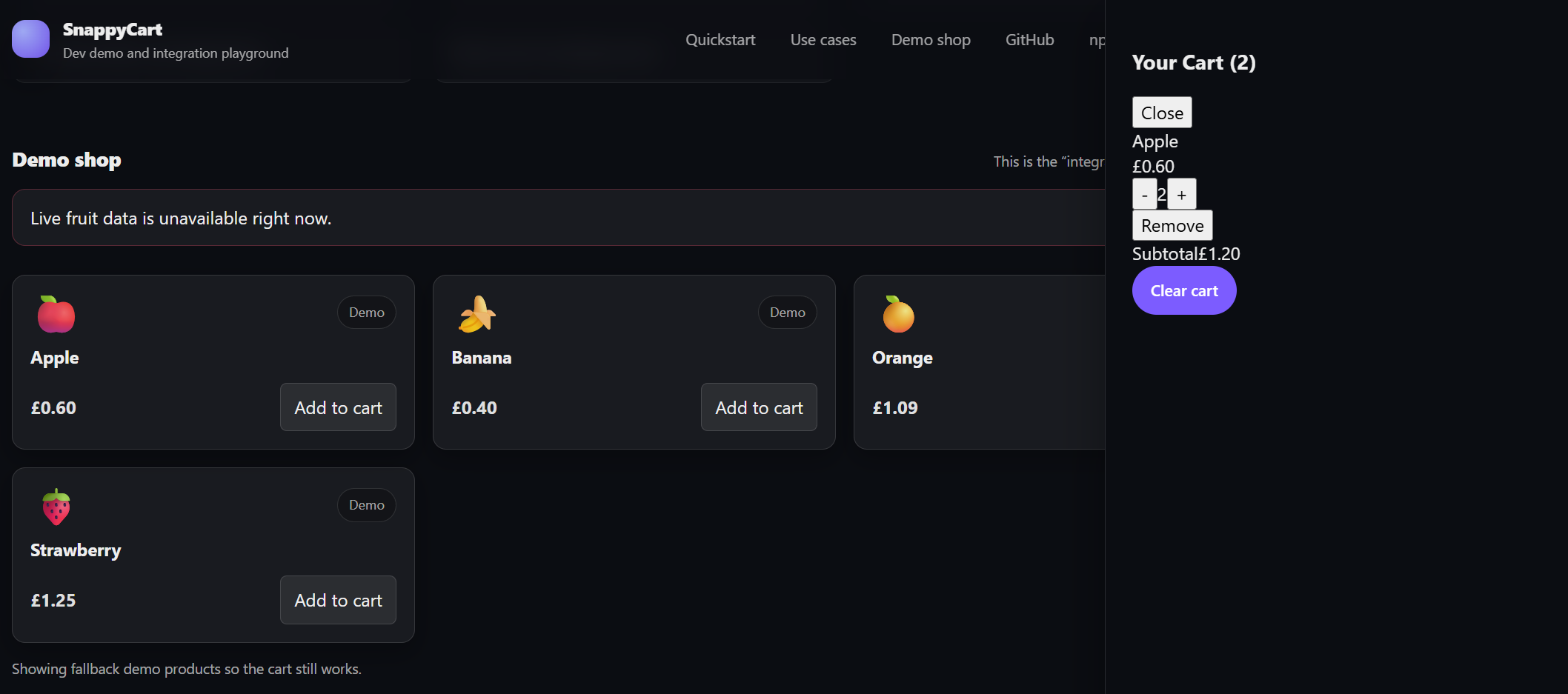

S4 Single line item, quantity > 1

Purpose

• State S4: one line item, quantity greater than 1.

Start state

• Apple already in cart once

Action

• add Apple again or increment quantity to 2
• keep drawer open for readability if needed

What should be visible

• one line item only
• quantity displayed as 2
• subtotal = £1.20
• no duplicate Apple rows

Important

• This state should clearly prove that same-item add merges quantity instead of creating a second line.

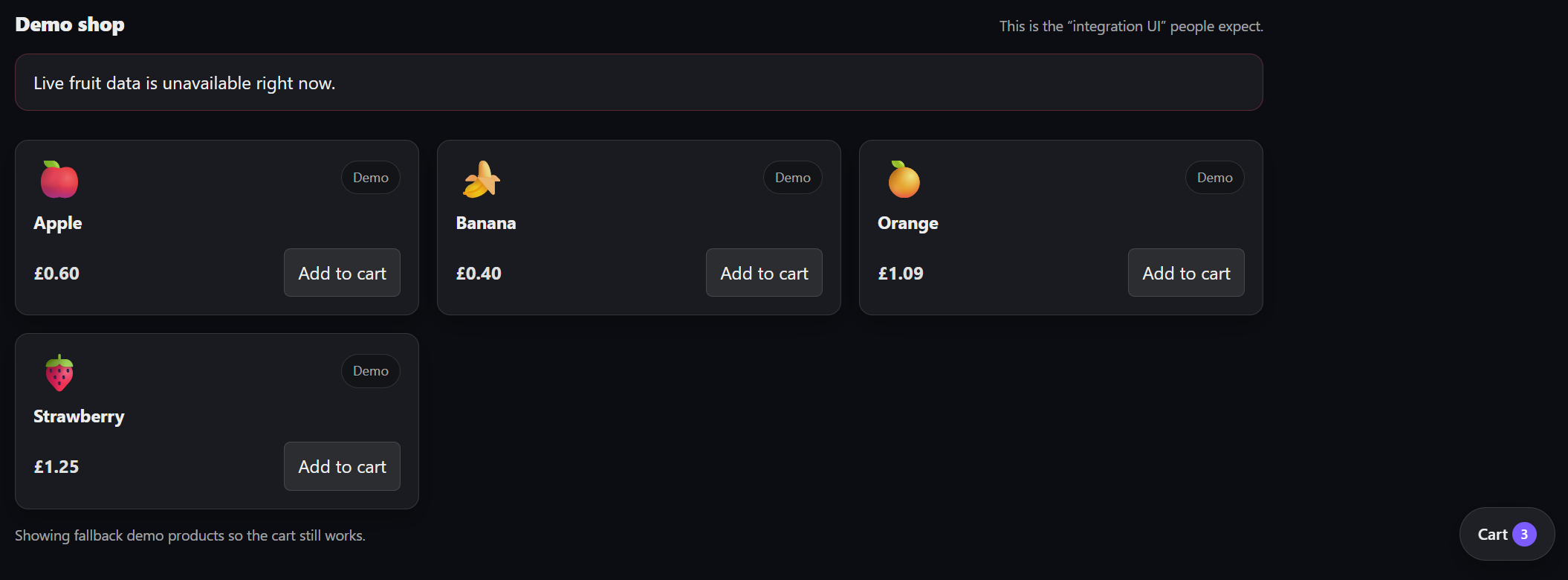

S6 Multi-line cart, drawer closed

Purpose

• State S6: multi-line cart, drawer closed.

Start state

• Apple quantity = 2
• Banana not yet added
• drawer closed

Action

• add Banana once
• keep drawer closed

What should be visible

• badge = 3
• drawer closed

Optional

• If closed state does not visually communicate enough, just make sure the badge count is readable.

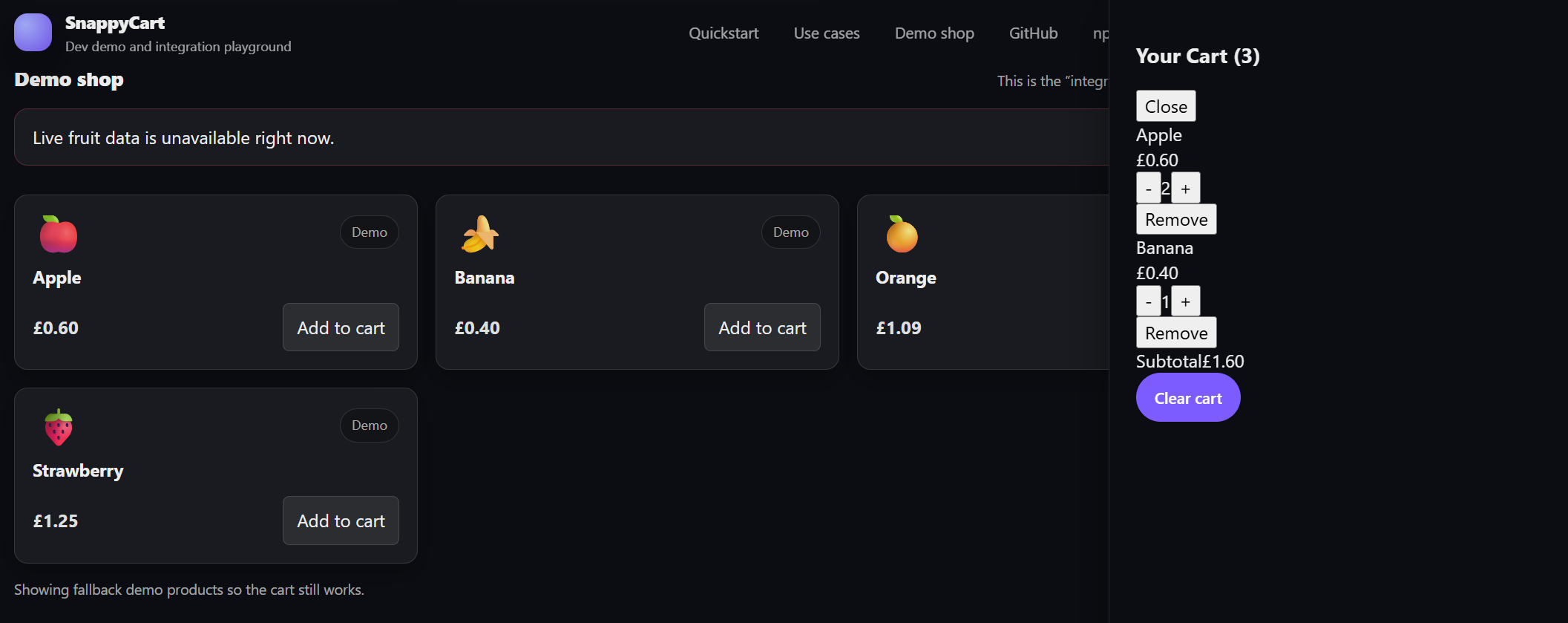

S7 Multi-line cart, drawer open

Purpose

• State S7: multi-line cart, drawer open.

Start state

• Apple quantity = 2
• Banana quantity = 1

Action

• open the drawer

What should be visible

• two line items
• Apple line with quantity 2
• Banana line with quantity 1
• subtotal = £1.60
• clear cart action visible if your UI supports it

Transition clips

The clips below should stay short and focused. Each one should show a single transition only.

T02 Open drawer

This clip shows the drawer opening from the empty closed state without mutating cart data.

Transition

• S0 -> S1

Start state

• empty cart
• drawer closed

Action

• click cart icon
• drawer opens

End state

• empty open drawer

Clip goal

• Show that opening the drawer changes UI state only and does not mutate cart contents.

T04 Add first item

This clip shows the cart moving from empty to a single line item state.

Transition

• S0 -> S2 or visually into open equivalent if your UI opens drawer

Start state

• empty cart
• drawer closed

Action

• click add-to-cart for Apple once

End state

• one item added
• badge updates to 1

Clip goal

• Show the first successful add.

Important

• If your host demo auto-opens the drawer on add, that is fine, but the clip still clearly shows the first-item transition.

T06 Add same item and merge quantity

This clip shows quantity increasing on an existing line item instead of creating a duplicate line.

Transition

• S2 -> S4

Start state

• Apple already in cart once
• drawer open if needed for visibility

Action

• click add Apple again or use increment on Apple

End state

• Apple remains a single line item
• quantity changes from 1 to 2
• subtotal updates

Clip goal

• Show merge-by-product-id behaviour, not duplicate-line behaviour.

T08 Add different item and create multi-line cart

This clip shows the cart transitioning from a single-line state to a multi-line state.

Transition

• S2 -> S6

Start state

• Apple quantity = 1

Action

• add Banana once

End state

• cart now has two distinct lines

Clip goal

• Show transition from single-line cart to multi-line cart.

T12 Decrement quantity back to one

This clip shows a single line item moving from quantity greater than one back to quantity equal to one.

Transition

• S4 -> S2

Start state

• Apple quantity = 2
• drawer open

Action

• click decrement once

End state

• Apple quantity becomes 1
• subtotal decreases correctly

Clip goal

• Show decrement above one without removing the line.

T14 Remove last line item

This clip shows the cart returning to the empty state after the last line item is removed.

Transition

• S2 -> S0 or S3 -> S1

Start state

• exactly one line item in cart
• quantity = 1
• drawer open is best for this clip

Action

• click decrement if quantity-1 removes line, or click remove button

End state

• cart becomes empty
• empty state appears

Clip goal

• Show last-line removal and return to empty cart.

T30 Clear cart

This clip shows the cart being cleared from a non-empty state.

Transition

• non-empty -> empty

Start state

• multi-line cart
• drawer open
• clear cart button visible

Action

• click clear cart

End state

• all items removed
• empty state visible
• subtotal reset to zero

Clip goal

• Show bulk reset behavior clearly.

Cross-matrix view

Cart data transitions

From \ To	C0 Empty	C1 SingleQty1	C2 SingleQtyGT1	C3 MultiLine
C0 Empty	INIT, CLEAR(empty)	ADD_NEW_ITEM	Not direct	Not direct
C1 SingleQty1	REMOVE_LAST, CLEAR	No-op or invalid actions	ADD_SAME, INCREMENT	ADD_DIFFERENT
C2 SingleQtyGT1	REMOVE_LAST, CLEAR	DECREMENT to 1	INCREMENT, SET_QUANTITY(n > 1)	ADD_DIFFERENT
C3 MultiLine	CLEAR, remove until empty	Remove until one line remains at qty 1	Remove until one line remains at qty > 1	Add, increment, remove non-last

Drawer transitions

From \ Event	OPEN_DRAWER	CLOSE_DRAWER	CART_MUTATION
D0 Closed	D1	D0	Should remain D0 unless host app changes it
D1 Open	D1	D0	Should remain D1 unless host app changes it

Recommended coverage priority

P0

• add first item
• add same item
• add different item
• decrement from quantity greater than 1 to quantity equal to 1
• remove last line item
• clear the cart
• open and close the drawer without data corruption

P1

• invalid quantity handling
• invalid product payload handling
• subtotal recalculation
• stale action handling after clear
• repeated user clicks

P2

• keyboard close behaviour
• image fallback rendering
• host-controlled integration edge cases

Practical contributor notes

This matrix should guide:

• reducer unit tests
• provider and hook integration tests
• component tests for CartDrawer
• component tests for CartIcon
• demo end-to-end smoke coverage

It should not be treated as a requirement to write one test per row in the same layer.

The point is to make sure the contract is fully represented and covered at the right level.

Summary

snappycart has two important state dimensions:

• cart data state
• drawer visibility state

The project also relies on derived values such as totalItems and subtotal.

That makes state transition testing a strong fit for the package.

This matrix gives contributors a complete model for reasoning about valid behaviour, invalid behaviour, and risk-based test coverage.
